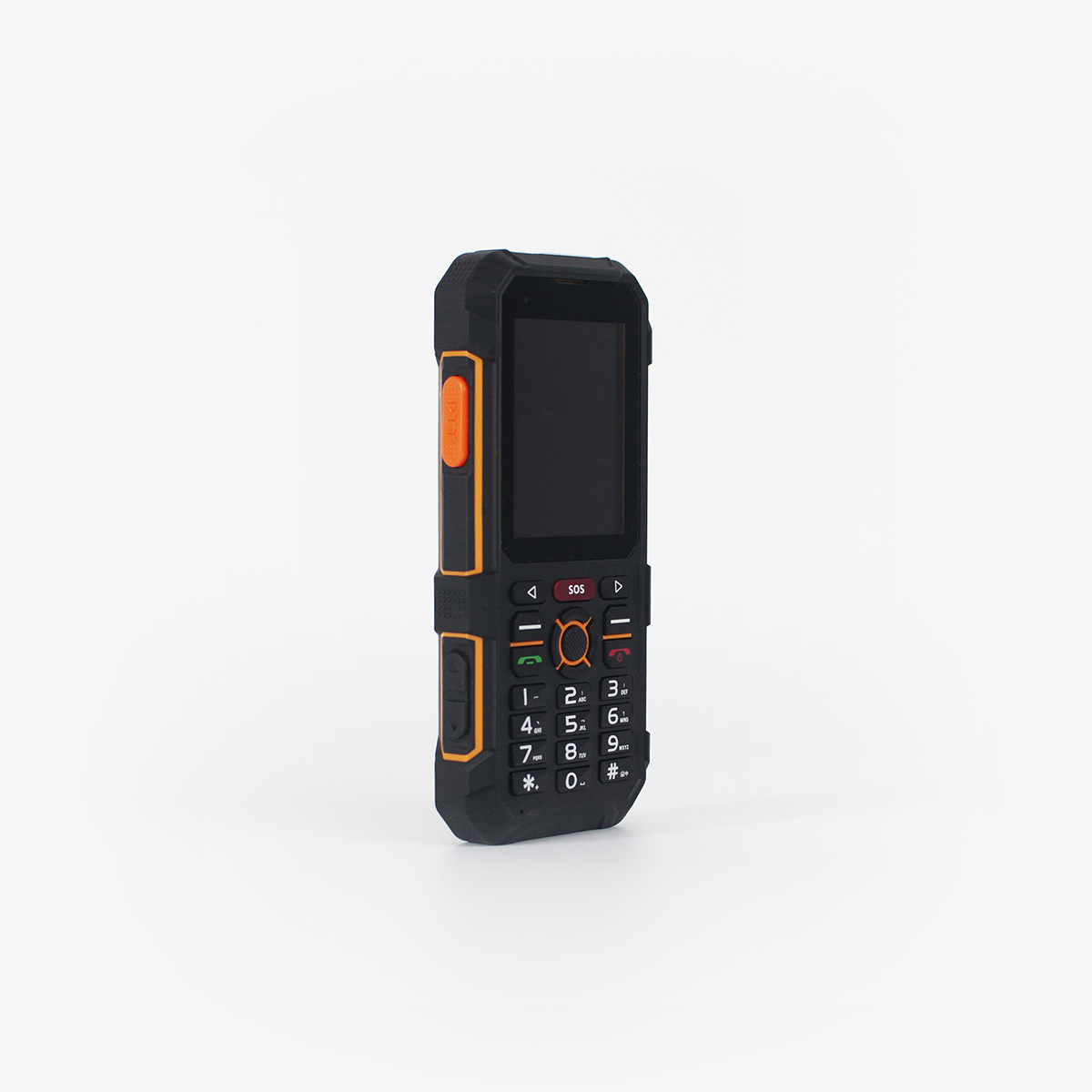

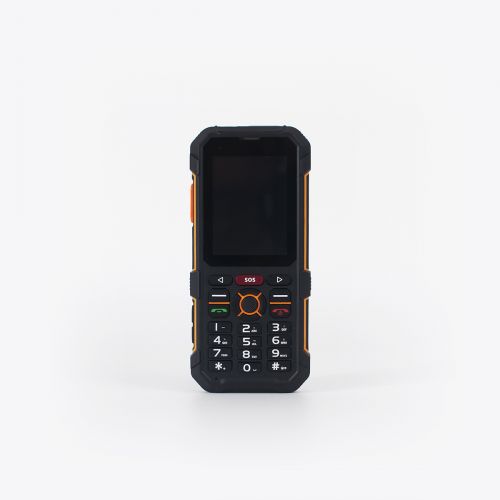

4G LTE POC radios AN180 with 4000mAh battery capacity
Explosion-proof customization, touch screen keyboard, IP68 protection level, NFC support, Main rear camera 13MP, Support GPS and Bluetooth, Strong magnetic speaker, can install industry software to meet different need.
Product model: AN180
Dimension(HxWxD): 134.6*60.6*22(mm）
Weight: 175g
Operating system: Android 8.1
Battery: 4000mAh, detachable
Explosion-proof certification: Domestic explosion-proof L4
CPU: MTK6739, quad-core 28nm, 1.28GHz
Storage: 1GB+8GB
Expand storage: Maximum 128GB
TP: Touch IC:6336U
LCD: HD 240*320 IC:ST7789
CAM: Main rear camera 13M IC: SP2508
Positioning navigation: GPS+Galileo+GLONASS (choose two from three), support AGPS
Bluetooth: Bluetooth 4.2
FM: Yes, headphones can be used as antennas
Frequency band:
| EU Version | GSM: B2/3/5/8 WCDMA: B1/5/8 FDD: B1/3/5/7/8/20/28A/28B TDD: B38/39/40/41 | |
| US Version | GSM: B2/3/5/8 WCDMA: B1/2/4/5/8 FDD: B2/4/5/7/12/17/28A/28B/66 | |
Card Slot: Dual SIM card+TF card
Trumpet: 8Ω 3W(strong magnetic speaker)
Recharging current: 5V~2A
Earphone: 3.5mm standard, CTIA
USB: Type-C interface (support OTC)
Antoker is aim to be the leading industrial walkie talkie solution supplier.
So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
√ Paid maintenance and parts: for artificial faulty
2. Brand OEM service:
√ Partly OEM service
√ Complete OEM service
3. Technical ODM service:
We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
30 Engineers:
It embraces 30 professional engineers, including hardware engineer, RF engineer,Android system engineers, embedded engineers.
10 Years:
It has 10 years of ODM experience on rail way project, security guard, patrol system, logistics customization, hotel inner communication system.
6000 Pieces:
It can produce 6000 pieces radios per month.
